Features
- Isolated
- Fan assisted cooling
- For special purpose
- Anodised aluminium
- Short circuit proof
Availability: Out of Stock – Not Available in Australia
$355.06 – $583.72
Details

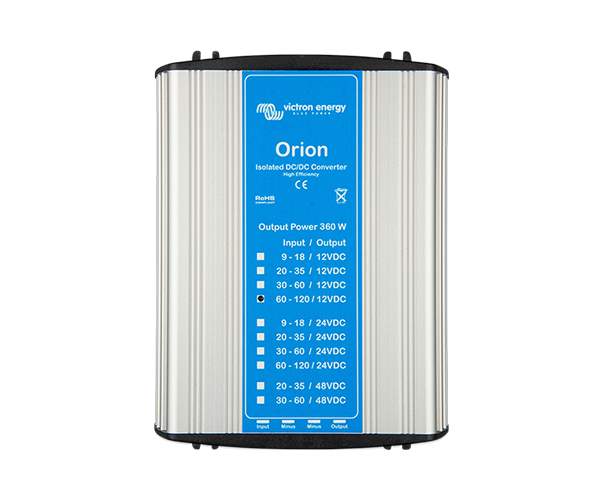

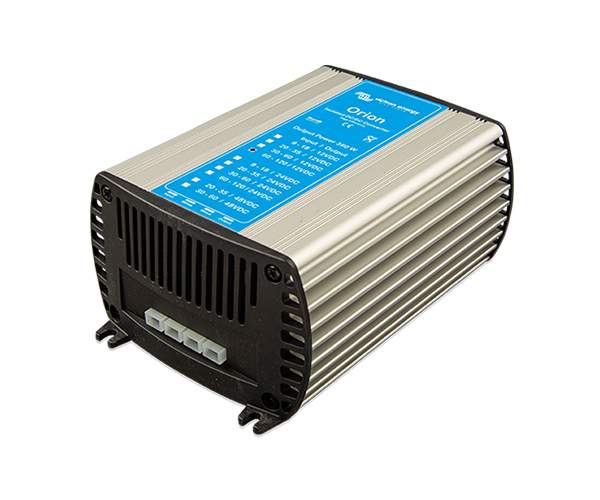

Switched Mode DC-DC converter
The converter must be mounted securely in a cool, dry location. Connect the negative input leads to the minus terminal on the converter.
Attention: A bad minus connection could make the output voltage equal to the input voltage! Then connect the input EAD via a fuse to the input terminal. At this point make sure that the output voltage is OK. If it is, you may safely connect the equipment to the OUT terminal via a fuse. (Fuse value equal to the output current).
Attention: The currents can be very high. Always use cables of sufficient diameter! If no input and output fuse are used than warranty is void.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Orion Isolated | Orion 12/12-30A (360W), Orion 12/24-15A (360W), Orion 48/48-8A (360W), Orion 110/12-30A (360W), Orion 110/24-15A (360W), Orion 12/27,6-12A battery charger, Orion 7-35/12-3A isolated buck-boost regulator |
