Features

For different charging methods, you can press the MODE-button to select another charging algorithm (the charger remembers the mode when disconnected from the mains and/or the battery).

If reconditioning is selected, the recondition LED will be on, and will flash when reconditioning is active.

If you want to switch to the night mode, you have to press the Mode button for 3 seconds. The night LED will turn on. The night mode automatically ends after 8 hours. If you want to end the night mode before 8 hours, you can get it done by again pressing the Mode button for 3 seconds.

The Blue Smart IP22 charger switches to low by pressing the Mode button for 6 seconds. The night LED will blink twice per second. The low mode remains activated until the Mode button is pressed again for 6 seconds. When night or low are on, the output current is reduced to max. 50% of the nominal output and the charger will be totally noiseless.

The battery is about 80% charged and ready for use when the absorption LED switches on. The battery is fully charged when the float or storage LED is on. You can stop charging at any time by interrupting the AC supply.

Models

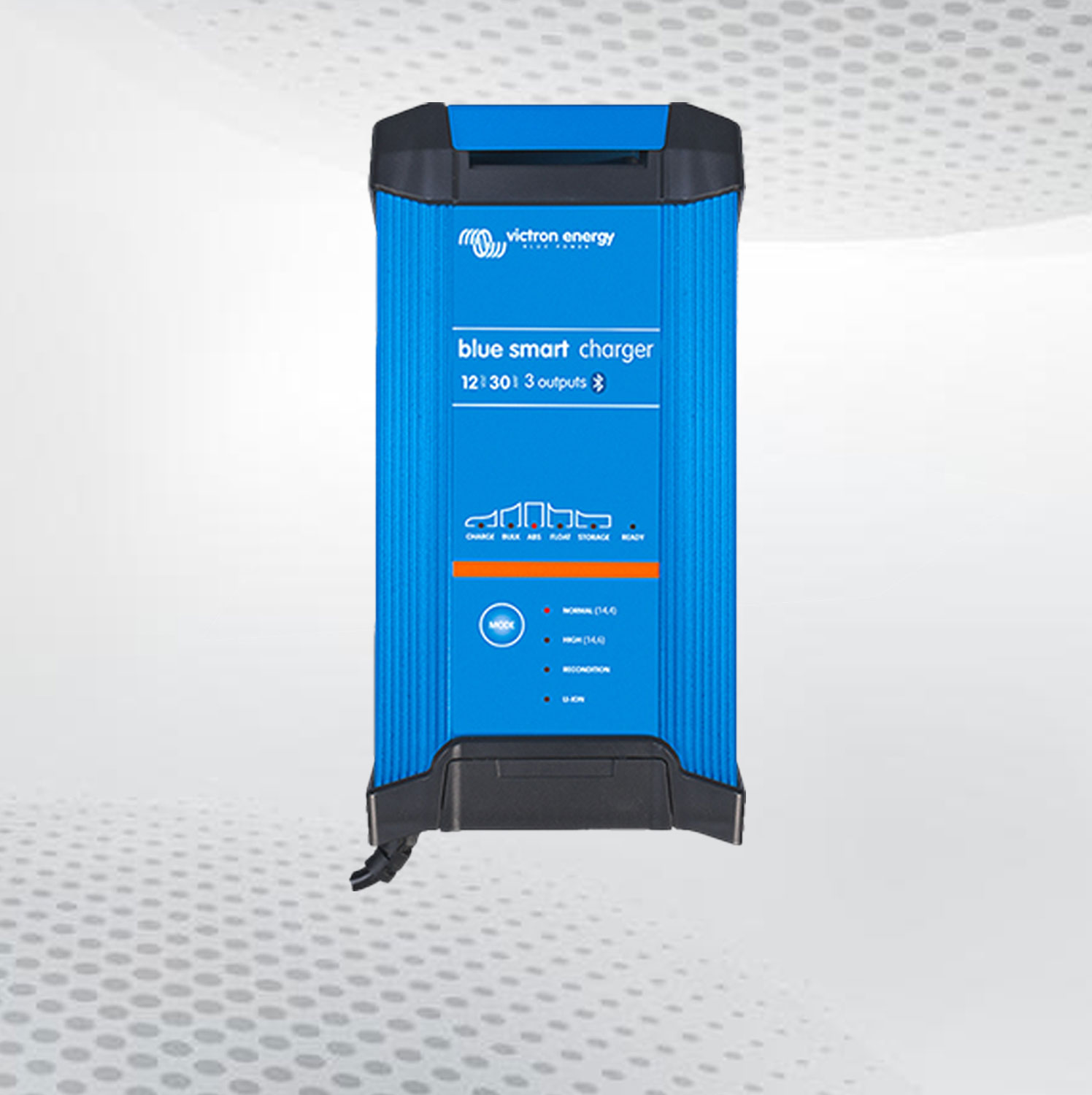

The Blue Smart IP22 Charger is available in 12V/ 30A with one output, 12V/ 30A with three outputs, 24V/ 16A with one output, and 24V/ 16A with three outputs models.
