Features
- Temperature protected
- An alternative to stacked inverters
- Step-up, step down and split phase balancing
- Aluminium Enclosure
- The ultimate solution for split phase installations
$959.24 – $1,159.10
Temperature protection
In case of overheating, the autotransformer is disconnected from the supply. Reset is manual. When it is warm the fan will blow and the red LED will be on. Disconnect some of the 120V load.
When it is overheated the MCB will switch off. The little blue switch will be out of the MCB. In order to restart it, you need to push the little blue switch back in and push the MCB to on. The transformer will restart and green LED will be on.
Over current protection
In case of over current the MCB will switch off. However, little blue switch remains inside the MCB. When there is over current, you need to disconnect some of the load and then push the switch back to on. The green LED will be on and it will be restarted.
Models

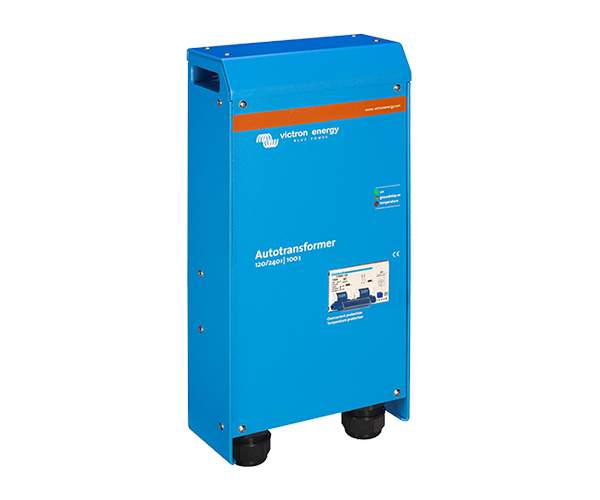

The Autotransformer is available in 120/240VAC-32A and 120/240VAC-100A models.
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Autotransformer | Autotransformer 120/240VAC-32A, Autotransformer 120/240VAC-100A |
